smart-E 5005

HV-supply
for electrostatic filters
50 kV / 400 W

The compact high-voltage generator for electrostatic filters.

The smart-E 5005 was specially developed for electrostatic precipitators. In particular, the extremely robust, integrated protective resistor makes the generator flashover-proof.
No external protective resistor is required even in the event of permanent flashovers in the filter.
The intelligent software is optimized for operation on an electrostatic precipitator and can be customized if required.
In addition to analog control, a CANopen interface is also available.
The smart-E 5005 also has EMC approval for household and small business use.

order number: 810420

request product

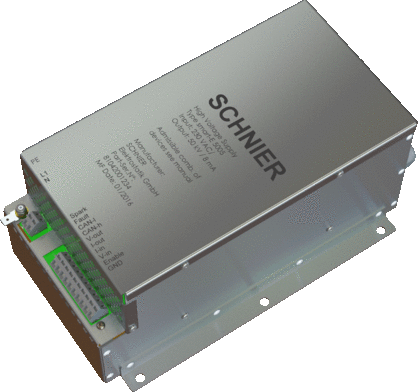

product image: smart-E 5005 <br> <br> HV-supply <br> for electrostatic filters <br> 50 kV / 400 W

Technical Data

Output Voltage
10-50 kV
Output current
max. 12 mA
Output Power
max. 400 W
Power supply
230 V / 50-60 Hz
Special features
diverse Betriebsarten möglich, Überschlagserkennung, automatisches Anfahren nach Überschlag
Control
0-10 V Sollwertvorgabe, 24 V Signale alternativ CAN Bus
High Voltage Connection
Trocken steckbarer Hochspannungsanschluss, 240 mm tief mit 4 mm Buchse
Dimensions
277x153x110 mm
Weight
ca. 4 kg
Protection class
IP 20
Ambient conditions
+5°C bis 55°C max. 70% r.F.
Storage temperatures
-20° C bis +70° C
