HVG 800 W

HV-supply
for electrostatic filters
50 kV / 800 W

The compact high voltage generator for electrostatic filters in the control cabinet.

The HVG 800 W high-voltage power supply was specially developed for electrostatic precipitators. It consists of 2 smart-E 5005 connected in parallel and installed in a compact control cabinet.
In particular, the extremely robust, integrated protective resistor makes the generator flashover-proof.
Even in case of permanent flashovers in the filter, no external protective resistor is necessary.
The intelligent software is optimized for operation on an electrostatic precipitator and can be customized if required.
In addition to analog control, a CANopen interface is also available.
The HVW 800W also has EMC approval for household and small business use.

order number: 900078

request product

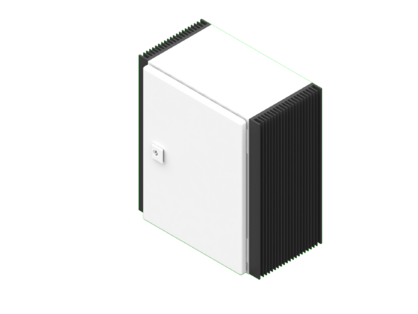

product image: HVG 800 W <br> <br> HV-supply <br> for electrostatic filters <br> 50 kV / 800 W

Technical Data

Output Voltage
10-50 kV
Output current
max. 24 mA
Output Power
800 W
Power supply
230 V / 50-60 Hz
Special features
diverse Betriebsarten möglich, Überschlagserkennung, automatisches Anfahren nach Überschlag
Control
0-10 V Sollwertvorgabe, 24 V Signale alternativ CAN Bus
High Voltage Connection
Trocken steckbarer Hochspannungsanschluss, 240 mm tief mit 4 mm Buchse
Dimensions
360x400x210 mm
Weight
ca. 26,5 kg
Protection class
IP 44
Ambient conditions
+5° C bis 45° C max. 70% r.F.
Storage temperatures
-20° C bis +70° C

Downloads

Betriebsanleitung
