HVG 400W

HV-supply
for electrostatic filters
50 kV / 400 W

50 kV / 400 W
The compact high voltage generator for electrostatic filters in the control cabinet

The HVG 400 W high-voltage power supply was specially developed for electrostatic precipitators. It consists of the smart-E 5005 installed in the control cabinet.
The extremely robust, integrated protective resistor in particular makes the generator flashover-proof.
No external protective resistor is required even in the event of permanent flashovers in the filter.
The intelligent software is optimized for operation on an electrostatic precipitator and can be customized if required.
In addition to analog control, a CANopen interface is also available.
The HVW 400W also has EMC approval for household and small business use.

order number: 900077

request product

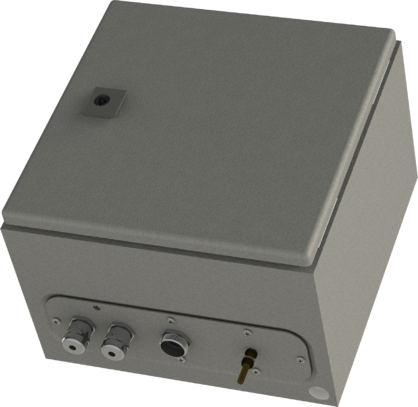

product image: HVG 400W </br> </br> HV-supply for electrostatic filters

Technical Data

Output Voltage
10-50 kV
Output current
max. 12 mA
Output Power
max. 400 W
Power supply
230 V / 50-60 Hz
Special features
diverse Betriebsarten möglich, Überschlagserkennung, automatisches Anfahren nach Überschlag
Control
0-10 V Sollwertvorgabe, 24 V Signale alternativ CAN Bus
High Voltage Connection
Trocken steckbarer Hochspannungsanschluss, 240 mm tief mit 4 mm Buchse
Dimensions
300x300x210 mm
Weight
ca. 14,5 kg
Protection class
IP 44
Ambient conditions
+5° C bis 45° C max. 70% r.F.
Storage temperatures
-20° C bis +70° C

Downloads

Betriebsanleitung
