HVG 1200W

HV-supply
for electrostatic filters
50 kV / 1200 W

50 kV / 1200 W
The compact high voltage generator for electrostatic precipitators in the control cabinet.

The HVG 1200 W high-voltage power supply was specially developed for electrostatic precipitators. It consists of 3 smart-E 5005 connected in parallel and installed in a compact control cabinet.
In particular, the extremely robust, integrated protective resistor makes the generator flashover-proof.
Even in case of permanent flashovers in the filter, no external protective resistor is necessary.
The intelligent software is optimized for operation on an electrostatic precipitator and can be customized if required.
In addition to analog control, a CANopen interface is also available.
The HVW 1200W also has EMC approval for household and small business use.

request product

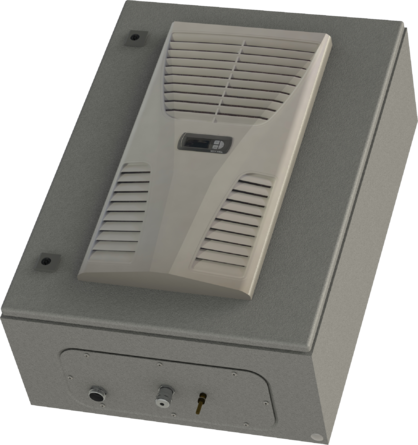

product image: HVG 1200W </br> </br> HV-supply for electrostatic filters

Technical Data

Output Voltage
10-50 kV
Output current
max. 36 mA
Output Power
max. 1200 W
Power supply
230 V / 50-60 Hz
Special features
diverse Betriebsarten möglich, Überschlagserkennung, automatisches Anfahren nach Überschlag
Control
0-10 V Sollwertvorgabe, 24 V Signale alternativ CAN Bus
High Voltage Connection
Trocken steckbarer Hochspannungsanschluss, 240 mm tief mit 4 mm Buchse
Dimensions
500x700x300 mm
Weight
ca. 46 kg
Protection class
IP 44
Ambient conditions
+5° C bis 45° C max. 70% r.F.
Storage temperatures
-20° C bis +70° C
